Description

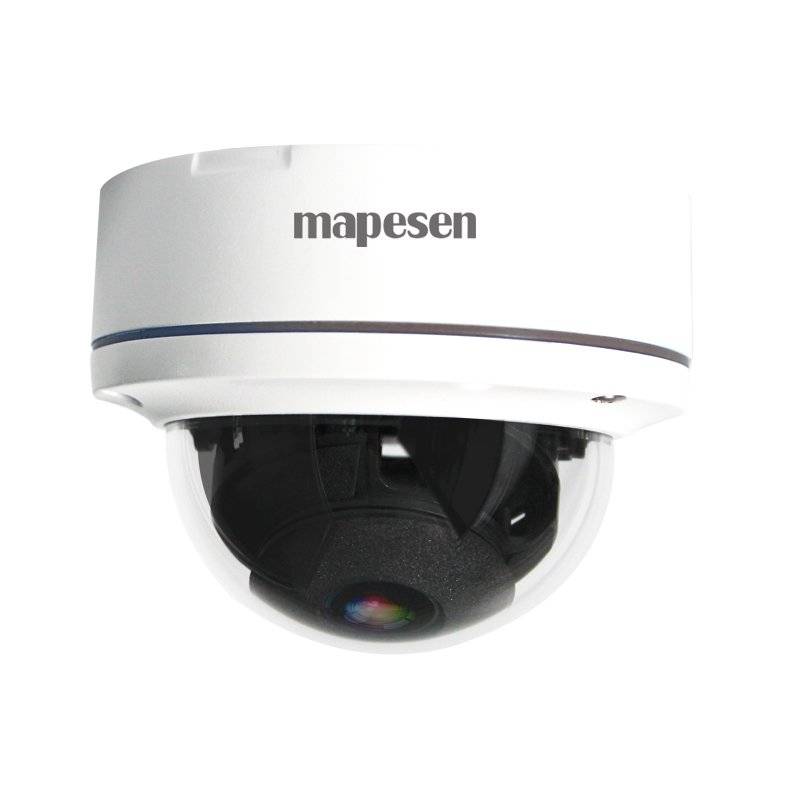

Mapesen 960P 4 IN 1 SMART IR Vandal-Proof Varifocal Camera, a independence brand from Unite States, based on the research and development from South Korea, is a manufacture specializing in the CCTV products, combination of the research, production and marketing. Our customers are from all around the world, such USA, Canada, Brazil and many European countries because of our good quality and competitive price. Our priority is customer’s satisfaction, and to build good cooperated relationship in the long term.
| Model No. | F5BH130 |
| Camera | |
| Image Sensor | 1/3″ CMOS Image Sensor |
| Resolution | 960P@25/30fps |
| Effective Pixels | 1280(H)*800(V) |
| Video Standard | PAL/NTSC |
| Synchronization | Internal |
| Day & Night mode | External Control(default)/Auto /(B/W )/Color(OSD Switch) |
| WDR | Digital WDR |
| Min. Illumination | 0.15Lux@(F1.2,AGC ON)，0LUX with IR |
| S/N Ratio | ≥48dB(AGC OFF) |
| Electronic Shutter | AUTO/ 1/50（1/60）-1/100,000sec |
| White Balance | Auto |
| AGC | ON/OFF |
| BLC | Default OFF ( AREA Adjustable) |
| DNR | 0-100 Adjustable |
| Language | English/ Simplified Chinese/Japanese |
| OSD Menu | OSD Menu， Control up the coaxial cable (UTC) |
| Video Output | AHD/TVI/CVI-960P，CVBS -960H Can be switched |
| Sens-up | N/A |
| IR Distance | 35M |
| IR Led | 30 Leds |
| Other | Defog, Motion Detection, Privacy Mask, Mirror, Flip |
| LENS | |
| Focal Length | 3.6mm |
| Lens Mount | M12 |
| General | |
| Type | Outdoor Metal Bullet |
| Waterproof Level | IP66 |
| Power Supply | 12 V DC±10% |
| Power Consumption | 3.6W（IR ON） |
| Operating Temp. | -20 °C to +50 °C (- 14 °F to 122 °F ) |
| Storage Temp. | -40 °C to +60 °C ( -40 °F to 140 °F ) |
